Using Linear Programming

Data Envelopment Analysis, is a linear programming procedure for a frontier analysis of inputs and outputs. DEA assigns a score of 1 to a unit only when comparisons with other relevant units do not provide evidence of inefficiency in the use of any input or output. DEA assigns an efficiency score less than one to (relatively) inefficient units. A score less than one means that a linear combination of other units from the sample could produce the same vector of outputs using a smaller vector of inputs. The score reflects the radial distance from the estimated production frontier to the DMU under consideration.

There are a number of equivalent formulations for DEA. The most direct formulation of the exposition I gave above is as follows:

Let tex2html_wrap_inline115 be the vector of inputs into DMU i. Let tex2html_wrap_inline119 be the corresponding vector of outputs. Let tex2html_wrap_inline121 be the inputs into a DMU for which we want to determine its efficiency and tex2html_wrap_inline123 be the outputs.

We would like to find the best combination of DMUs that dominates DMU 0. This problem can be written as:

The measure of efficiency for tex2html_wrap_inline125 is given by the following fractional program:

displaymath109

where tex2html_wrap_inline127 is the weight given to DMU i in its efforts to dominate DMU 0 and tex2html_wrap_inline131 is the efficiency of DMU 0. In general, we should include DMU 0 on the left hand side of the equations. Then, the optimal tex2html_wrap_inline131 cannot possibly be more than 1. When we solve this linear program, we get a number of things:

  1. The efficiency of DMU 0 ( tex2html_wrap_inline131 ), with tex2html_wrap_inline137 meaning that the unit is efficient.
  2. The unit's ``comparables'' (those DMU with nonzero tex2html_wrap_inline139 ).
  3. The ``goal'' inputs (the difference between tex2html_wrap_inline121 and tex2html_wrap_inline143 )
  4. Alternatively, we can keep inputs fixed and get goal outputs ( tex2html_wrap_inline145 )

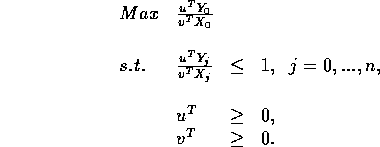

There is another, probably more common formulation, that provides the same information. We can think of DEA as providing a price on each of the inputs and a value for each of the outputs. The efficiency of a DMU is simply the ration of the inputs to the outputs, and is constrained to be no more than 1. The prices and values have nothing to do with real prices and values: they are an artificial construct. The goal is to find a set of prices and values that puts the target DMU in the best possible light. The goal, then is to

displaymath110

Here u and v are vectors of prices and values respectively. Sometimes, people require u and v to be strictly positive, by forcing them to be tex2html_wrap_inline155 for a very small epsilon. This change makes very little difference: the dual variables associated with these constraints have a nice interpretation and it makes certain advanced analysis a bit easier..

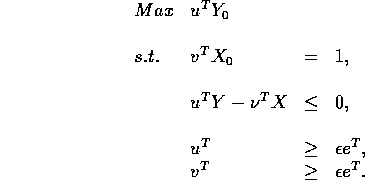

This linear fractional program can be equivalently stated as the following linear programming problem (where Y and X are matrices with columns tex2html_wrap_inline161 and tex2html_wrap_inline163 respectively).

displaymath111

These two formulations actually give the same information. You can read the solution to one from the shadow prices of the other.

DEA assumes that the inputs and outputs have been correctly identified. Usually, as the number of inputs and outputs increase, more DMUs tend to get an efficiency rating of 1 as they become too specialized to be evaluated with respect to other units. On the other hand, if there are too few inputs and outputs, more DMUs tend to be comparable. In any study, it is important to focus on correctly specifying inputs and outputs.
